RST33 Series Vertical Multi-parameter Analyzer (Sensor Method)
The ULT200 ultrasonic level transmitter provides reliable non-contact level measurement for liquids, solids and slurries. With advanced echo processing technology, it delivers high accuracy even in challenging industrial environments.
- 24-Hour Response Fast turnaround time
Product Image

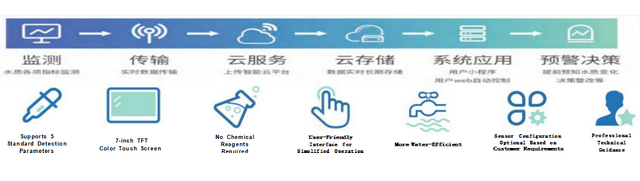

Water Quality Early Warning Monitoring System Operation Process
| Application Scenarios | Surface Water, River Water | |||

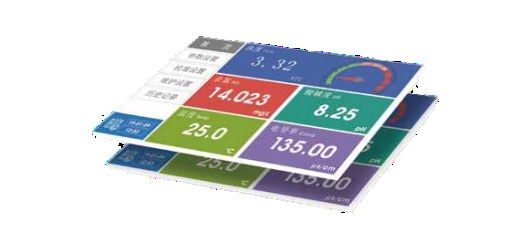

| Product Introduction | The Water Quality Multi-parameter Online Analyzer, based on measurement principles such as optics and electrochemistry, can monitor multiple water quality parameters including temperature, pH, conductivity, turbidity, dissolved oxygen, COD, ammonia nitrogen, nitrate nitrogen, chlorophyll, and blue-green algae. Features a 7-inch color touchscreen with a Chinese interface for easy operation. It includes data storage, viewing, and export functions, with user-configurable storage intervals. Signal outputs: a) 1x RS485 Modbus RTU standard protocol; b) 2x programmable switch outputs (for controlling self-priming pumps, automatic cleaning, etc.); c) 5x 4-20mA programmable outputs (optional). Password protection for calibration data prevents unauthorized adjustments by non-professionals. | |||

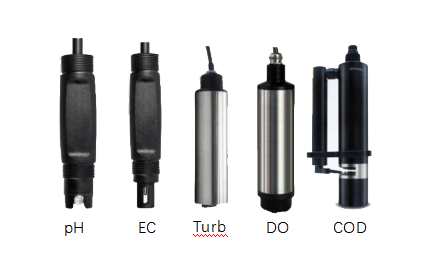

| Product Features | Digital intelligent sensors are freely combinable, plug-and-play, and automatically recognized by the transmitter. Allows selection of integrated or split installation based on different application scenarios for better cost efficiency. Automatically reads sensor internal calibration records; sensor replacement requires no recalibration, saving time. Features a new circuit design concept with extremely low failure rate and strong anti-interference capability. IP65 protection rating, suitable for indoor and outdoor installation requirements. | |||
| Sampling Parameters | Sample Connection: 3/8″ Quick-Connect Fitting; Sample Temperature: 5-40°C; Sample Flow Rate: 200-400 mL/min | |||
| Performance Specifications | Measurement Principle | Measurement Range | Accuracy | Resolution |
| PH Meter Sensor Parameters | Glass Sensor Method | 0-14PH | ±0.1PH | 0.01PH |
| Dissolved Oxygen Meter Sensor Parameters | Fluorescence Optical Technology | 0-20mg/L；0-200% | ±0.3mg/L | 0.01mg/L |
| Conductivity/TDS Meter Sensor Parameters | Four-electrode Sensor Method | Conductivity；0-500ms/cm；TDS:0 – 250g | ±0.5% | 0.01/0.1 |
| Turbidity Meter Sensor Parameters | 90° Scattered Light + 140° Transmitted Light | 0-4000NTU | ±0.5% | 0.01/0.1 |
| COD Meter Sensor Parameters | UV Fluorescence | 0-450mg/L | ±0.5% | 0.1/1 |
| Ammonia Nitrogen Meter Sensor Parameters | Ion Sensor Method | 0-1000mg/L[NH4-N];0-1000 mg/L[K+];0-14pH[pH] | ±0.5% | 0.1/1 |
| Suspended Solids / Sludge Concentration Meter Sensor Parameters | 140 ° Transmitted Light | 0.1-50000mg/L | ±0.5% | 0.1/1 |
| Nitrate Meter Sensor Parameters | Ion Sensor Method | 0-1000 mg/L[NO3-N];0-1000 mg/L[CI-];0-14pH[pH] | ±0.5% | 0.1/1 |
| Water Temperature Meter Sensor Parameters | Thermal Resistance | 0-60℃ | ±0.5℃ | 0.1/1 |
